Normal Reciprocity
Normal reciprocity is when your camera settings are balanced to allow light entering the lens to hit the light sensitive film evenly thus creating an image that is correctly exposed with no muddy shadows, high grain or blown out highlights – if you’re using colour film this will include no colour shift or colour cast.

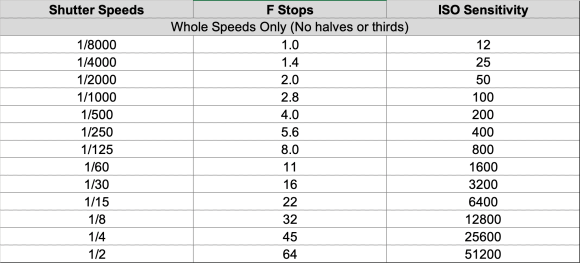

So exposure settings of 1/60 at f/11 will give the same amount of light as 1/125 at f/8 as 1/250 at f/5.6. Remember to take in to consideration changing your aperture will affect depth of field and sharpness so if you are shooting at f/16 you’ll need to compensate using your shutter speed alone but hopefully from this example you’ll understand…
What is Reciprocity Failure?
Reciprocity Failure is when your camera settings aren’t balanced which results in an incorrect amount of light hitting the light sensitive film for an incorrect duration of time. So If you’re unable to adjust your camera settings to compensate this will cause reciprocity failure. Failure can also occur when an ND filter is used and the incorrect meter reading / exposure settings are set.
The cut off point for each film type varies but there’s a reciprocity failure point for all film types – for black and white film this results in less dense images with increased grain, muddy shadows and blown out highlights. To compensate for this you will need to extend the exposure time and pull the processing time so highlights aren’t blown out but detail is retained in the shadows. Colour film requires similar time and processing adjustments to B&W but with the added bonus of colour shift. This can be corrected during post by adding more saturation and colour adjustments.
Interestingly reciprocity failure doesn’t occur in digital cameras – this is because light hits the sensor and is recorded in the camera whereas light can scatter and bleed into other layers on sensitive film. However a side effect of long exposures using digital is increased noise.

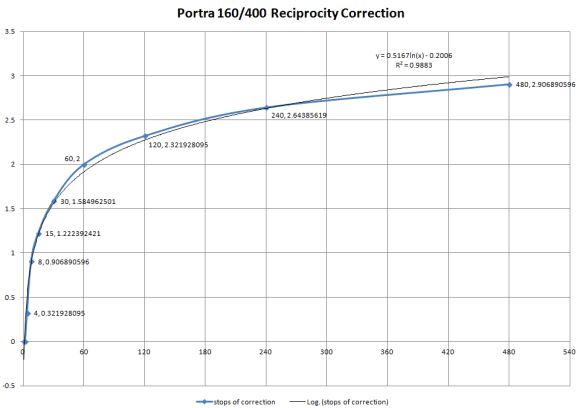

There are plenty of people who’ve taken the time to study different film stocks over the years and measure reciprocity. I used this graph by Isaac Sachs to reference Kodak Portra 160 & 400 to calculate how much time I would need to extend my exposures.
For Portra 400 reciprocity failure starts around 4s which would result in a 0.5x increase in exposure time. For those who want to see some results of over and under exposing Portra watch this video by Kyle McDougall.
The Shoot

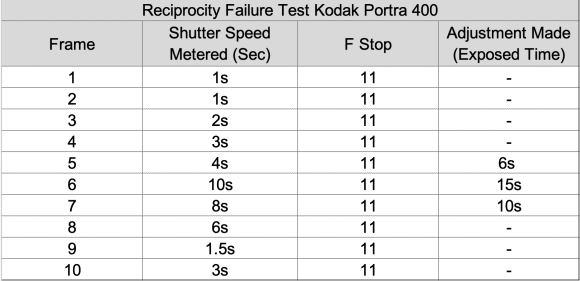

This was a simple test shoot of 10 frames just to give me a baseline for future experimentation and to see what mistakes I make now so I can make informed decisions on a future project.
Firstly I should’ve shot a lot more, like the entire roll more! Secondly the changes in colour shift aren’t nearly as dramatic as I was expecting. Frame 6 (bus stop) is too bright from what I wanted. I love that the shady bushes behind have retained detail but the moodiness and amber light that was cast over the road has been lost. I could fix this in post – but showing accurate test results is what i’m presenting here – not a prize winning photo. Thirdly I should’ve experimented with longer exposures (20, 30s + etc) in darker areas using a cable release to really stretch the film and experiment with the same subject using different settings to set a baseline for reference.
Metering was taken using the camera internal ETTL as well as a Light Meter app. I used Tetenal C41 developer using the standard development time of 3m 15s at 38Âșc. I did not pull the process. Full Tetenal development details can be found here
Frame 1
Frame 2
Frame 3
Frame 4 – feels too bright and saturated compared to the rest of the test
Frame 5 – I actually like the tones in this shot. Muted yet amber of the lighting nearby. Could do with a punch of saturation.
Frame 6 – getting washed out. Good shadow detail but lost amber glow and ambience of the environment. Too bright
Frame 7 – shifting towards yellow
Frame 8 – deeper reds
Frame 9 – more red tones
Frame 10 – shifting towards green
